Re: Kev's 1290 modification list

Post by stagger » Wed Apr 09, 2014 11:24 am

Kev I plan to get to the Dyno earlier and give you a clear run with your projects. Mine is all standard and I want a quick baseline and a peek at the A/F ratios of the out of the box system. Just amateur curiosity.
Stagger
2014 KTM SDR 1290

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Wed Apr 09, 2014 12:11 pm

No worries see you there, all fun & games. :D

You will need to block off your SAS pipes if you want a true A/F ratio, I will be bring 2 clamping tools to block off the SAS pipes from the outside, we can fit them on your bike if you want for the run, I will come a bit earlier around 830am encase you need to borrow them.

mintpaul
500cc
500cc
Posts: 80
Joined: Thu Mar 06, 2014 9:39 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black

Re: Kev's 1290 modification list

Post by mintpaul » Wed Apr 09, 2014 12:27 pm

Nice 1 Kev and Stagger

Looking forward to the results and your thoughts after the Dyno's :)

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Sat Apr 12, 2014 3:21 am

As I expected the 1290 runs to rich on our Ozzy fuels & we would pick up a few more HP by leaning it out.

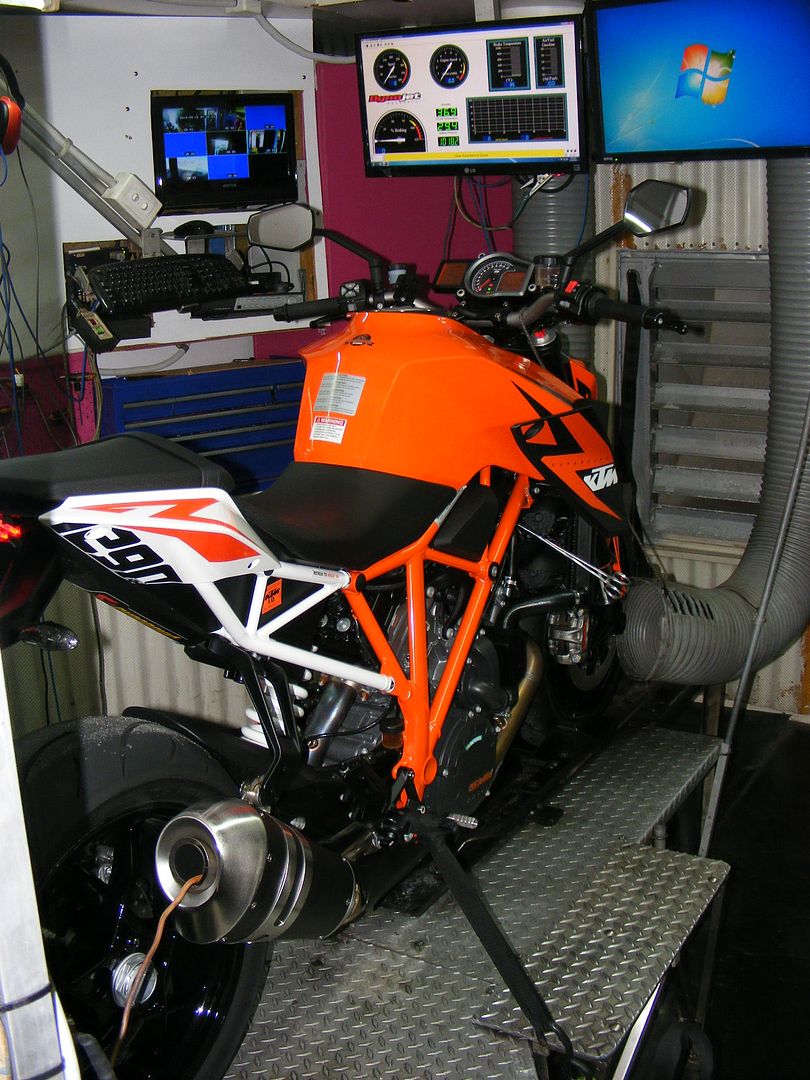

We did a shoot out between the Standard air filter against the DNA main air filter, no map change with standard exhaust & Can. RED run with DNA filter, BLUE run with STD filter.

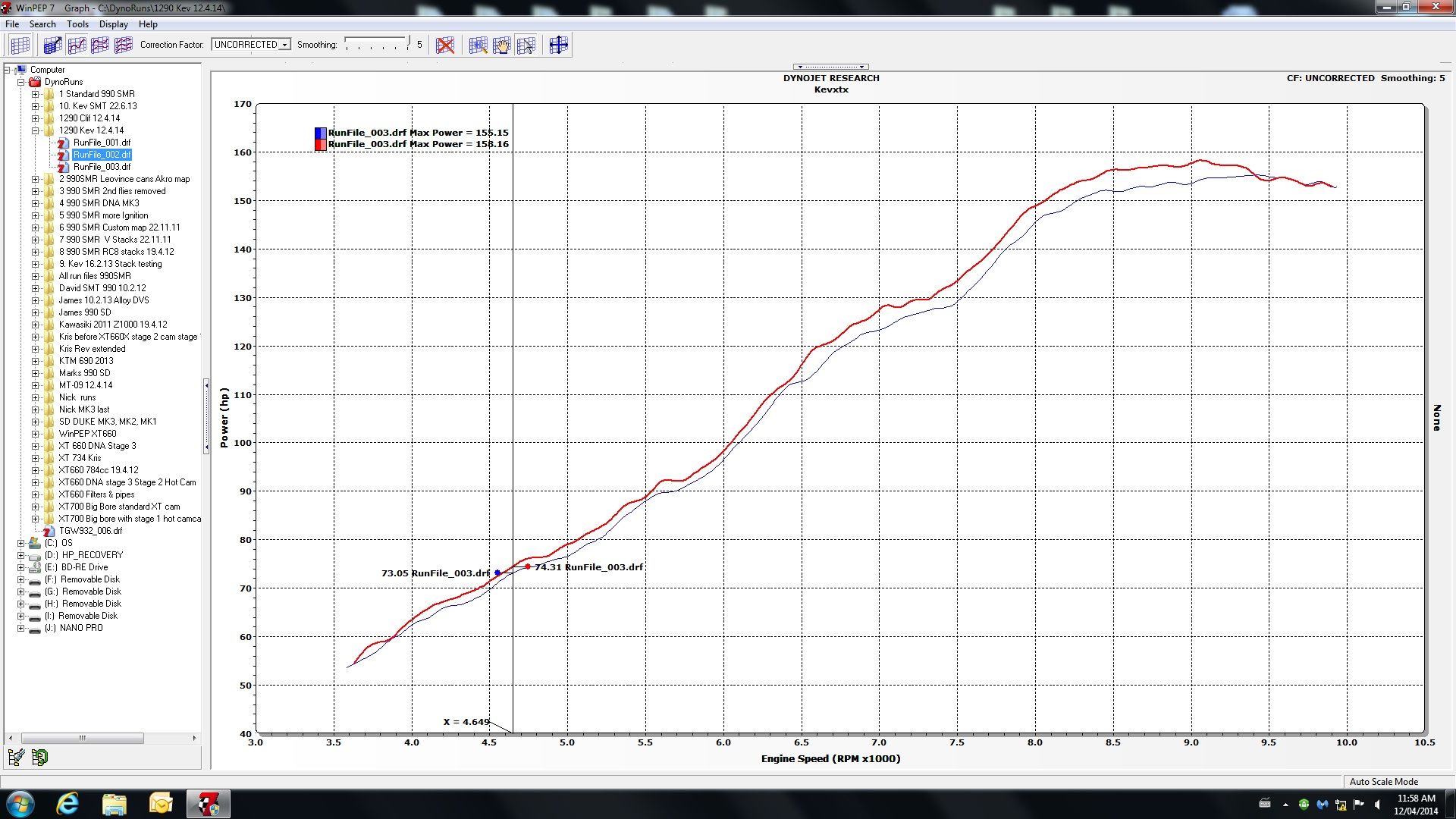

HP

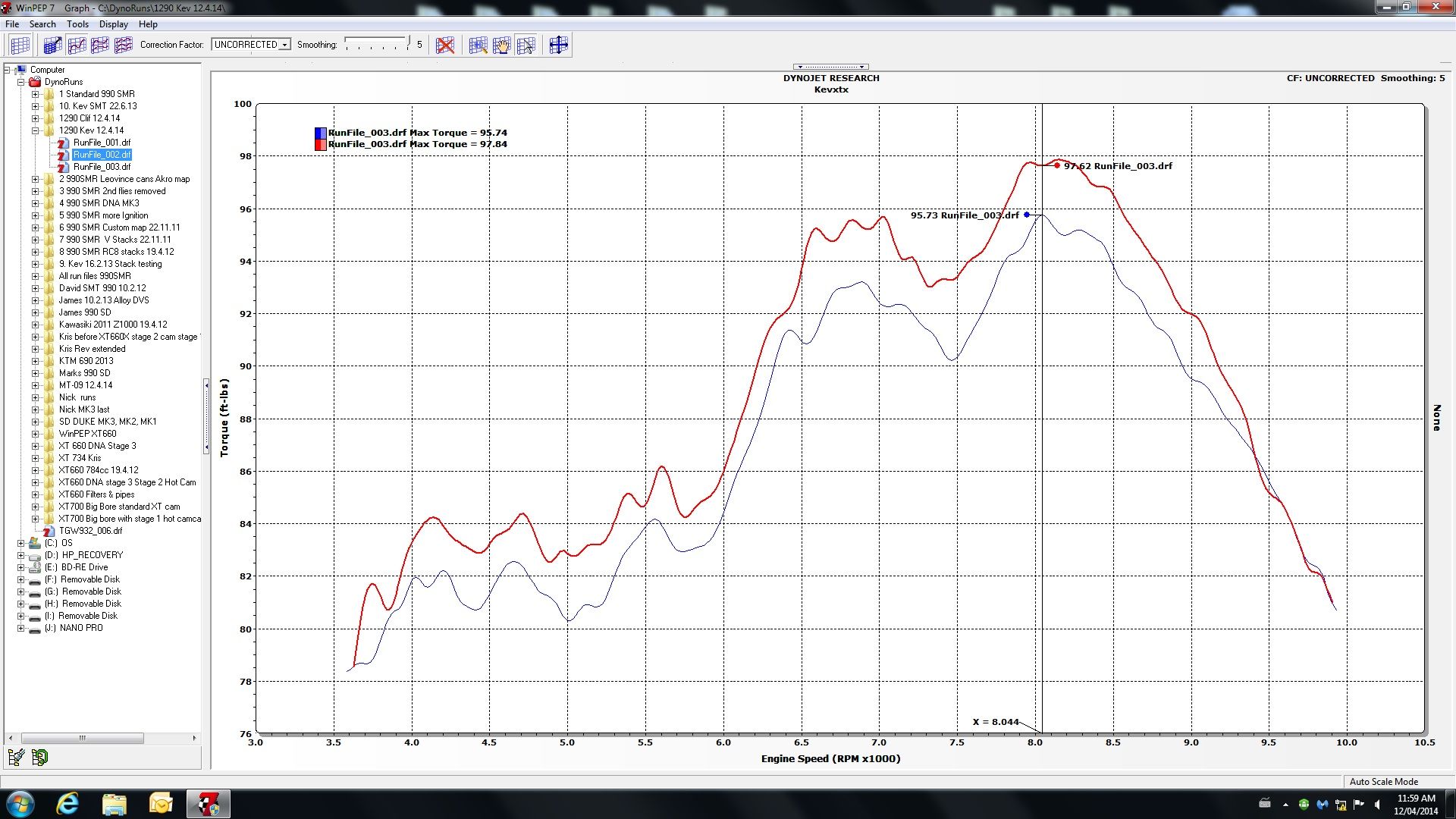

Torque

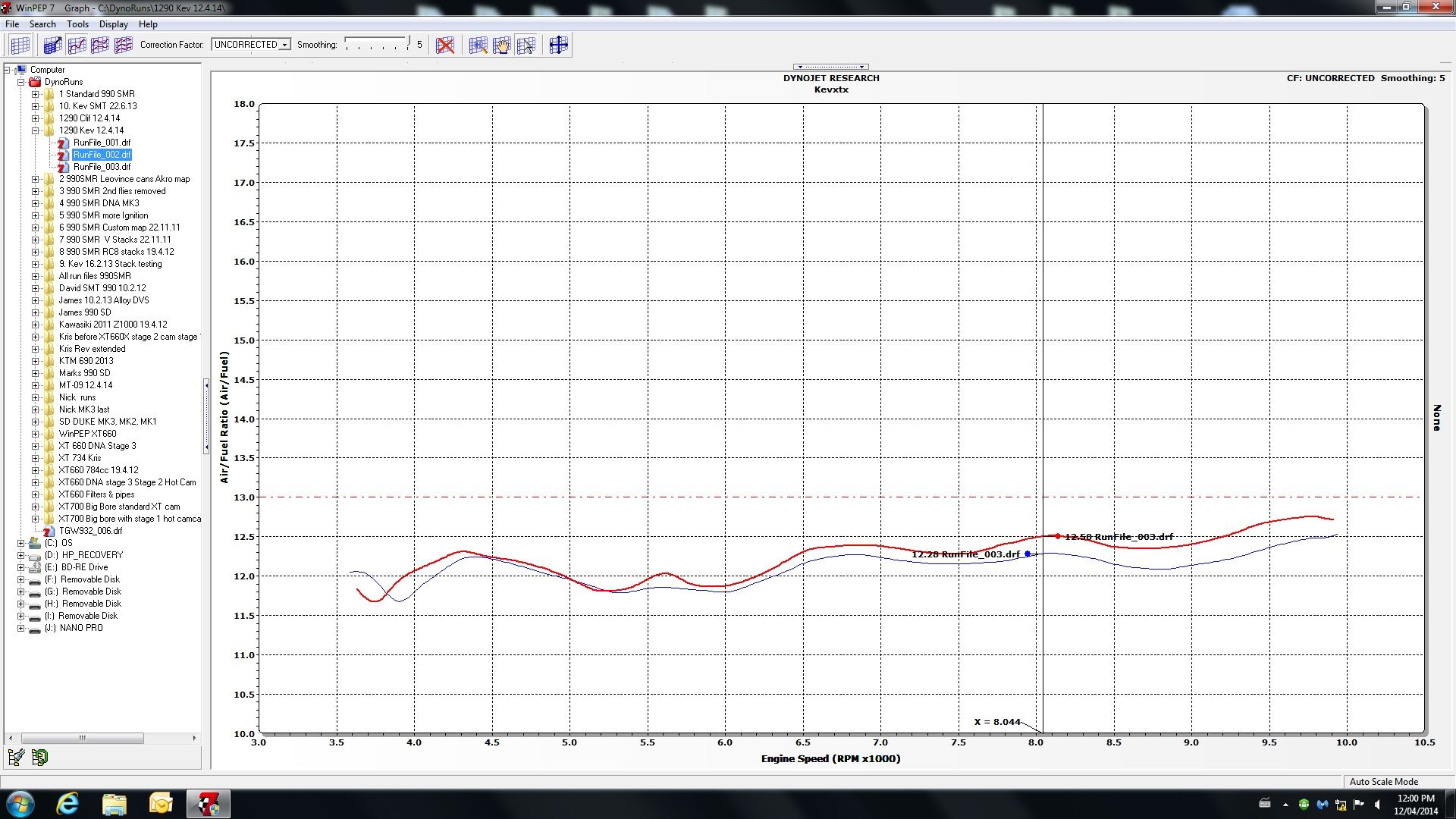

A/F ratio


One thing I am happy about for us Ozzy boys is we can add some more air flow in/out & the A/F ratio will not be to lean, time to start to playing with the air box. :D

mintpaul
500cc
500cc
Posts: 80
Joined: Thu Mar 06, 2014 9:39 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black

Re: Kev's 1290 modification list

Post by mintpaul » Sat Apr 12, 2014 4:14 am

Nice 1 Kev :D


Thanks for info :mrgreen:

LenFerguson
990cc
990cc
Posts: 729
Joined: Mon Jun 11, 2012 8:15 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black
Location: South Brisbane QLD

Kev's 1290 modification list

Post by LenFerguson » Sat Apr 12, 2014 11:24 am

Thanks Kev, first step is the DNA filter... Looks to be running very rich based A/F chart.
Current stable: KTM790 ADVR, Husky 701

Previously loved: KTM 990SMT, SMR, 1290SDR, 1190ADV, 690 Enduro, WR450F(10), F800GS(09), KLR650(08), KTM450EXC(05) FJR1300(04), KTM200EXC(03), XR400(03), CBR1000F(90), XR600(88), KR1(86)

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Sat Apr 12, 2014 1:23 pm

I have 2 more sets of the extended gear & brake levers if anyone wants a set.

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Sat Apr 12, 2014 1:41 pm

The difference between my modified SMT 990 & my standard 1290 with a DNA filter, the 1290 just has more power every where, from 6000rpm the 1290 just takes off.

HP WOW


Torque WOW again, measured on the same Dyno.


dflowers
900cc
900cc
Posts: 356
Joined: Sun Oct 23, 2011 3:08 am
Country: USA
City: Seattle
Year: 2010
Colour: White

Re: Kev's 1290 modification list

Post by dflowers » Sat Apr 12, 2014 4:58 pm

Impressive numbers for sure! Thanks for posting, and already showing how the engine is responding to initial mods.

mintpaul
500cc
500cc
Posts: 80
Joined: Thu Mar 06, 2014 9:39 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black

Re: Kev's 1290 modification list

Post by mintpaul » Sat Apr 12, 2014 11:27 pm

Hey Kev,

What do you think will be optimal for OZ fuels and riding conditions and which way are you going to go with the bike?

I will defiantly go the filter with my slin-on with baffle removed for the moment.



Cheers

Paul

downunder
Supporter
Supporter
Posts: 382
Joined: Sun Apr 21, 2013 11:23 am
Country: Australia
City: Mount Gambier
Year: 2014

Re: Kev's 1290 modification list

Post by downunder » Sat Apr 12, 2014 11:44 pm

kevxtx wrote:I have 2 more sets of the extended gear & brake levers if anyone wants a set.
Finally got to take a 1290 for a ride yesterday - pick mine up next week.
I will grab a set of the levers thanks.
Let me know payment details and I will shoot you my address.
Gone but not forgotten: '74 Honda XL100, '75 Suzi TS100, '76 Suzi T500, '78 Yam XT500, '80 Suzi GSX1100ET, '81 Suzi GSX100EX, '84 Honda VF1000R, '99 Honda CBR900RR, '10 KTM 990SMT

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Sat Apr 12, 2014 11:47 pm

downunder wrote:
kevxtx wrote:I have 2 more sets of the extended gear & brake levers if anyone wants a set.
Finally got to take a 1290 for a ride yesterday - pick mine up next week.
I will grab a set of the levers thanks.
Let me know payment details and I will shoot you my address.
$28.00 if posted in Oz, $30.00 posted over seas, I will PM you the payment details.

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Sat Apr 12, 2014 11:58 pm

mintpaul wrote:Hey Kev,

What do you think will be optimal for OZ fuels and riding conditions and which way are you going to go with the bike?

I will defiantly go the filter with my slin-on with baffle removed for the moment.
Cheers
Paul
99% of the time the magic A/F ratio number is 13.2:1, we tested 2 X 1290's on the Dyno yesterday & they both were to rich everywhere running on Ozzy fuels.

I also tested my O2 controller which is working in controlling the A/F ratio in the closed loop mapping it just needs to richen up the A/F ratio a bit more, which I will test soon once I make some more adjustments to it & I have done my air box & pipe mods I will head back to the Dyno for some more testing, the measured closed A/F ratio on the Dyno under load was 14.7:1 & my controller corrected it to 14:1, I am looking for a target of 13.6:1.

mintpaul
500cc
500cc
Posts: 80
Joined: Thu Mar 06, 2014 9:39 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black

Re: Kev's 1290 modification list

Post by mintpaul » Sun Apr 13, 2014 12:34 am

would there be much difference between 95 and premium?


I'm running premium from BP and Caltex which is the same fuel because it comes from the same refinery in Brisbane.


Cheers

Paul

LenFerguson
990cc
990cc
Posts: 729
Joined: Mon Jun 11, 2012 8:15 am
Country: Australia
City: Brisbane
Year: 2014
Colour: Black
Location: South Brisbane QLD

Kev's 1290 modification list

Post by LenFerguson » Sun Apr 13, 2014 1:27 am

Was 14:7/9 the result with the DNA filter Kev?
Current stable: KTM790 ADVR, Husky 701

Previously loved: KTM 990SMT, SMR, 1290SDR, 1190ADV, 690 Enduro, WR450F(10), F800GS(09), KLR650(08), KTM450EXC(05) FJR1300(04), KTM200EXC(03), XR400(03), CBR1000F(90), XR600(88), KR1(86)

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Sun Apr 13, 2014 1:33 am

mintpaul wrote:would there be much difference between 95 and premium?


I'm running premium from BP and Caltex which is the same fuel because it comes from the same refinery in Brisbane.


Cheers

Paul
My bike had BP 95ron fuel in it for the Dyno, there is not much difference between the RON ratings.

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Sun Apr 13, 2014 1:37 am

LenFerguson wrote:Was 14:7/9 the result with the DNA filter Kev?
The 14.7:1 is in the closed loop mapping for emission control when the bike is cruising & at small throttle openings, the figure was the same on both bikes with & without the DNA filter, the 14.7:1 is the jerking at small throttle openings we feel on the 1290's which is not bad by the way, but I know we can improve the ride by fooling the O2 sensor circuit to 13.6:1 which I target all my O2 controllers at.

Gnosisdog
675cc
675cc
Posts: 279
Joined: Mon Sep 03, 2012 4:25 pm
Country: United States
City: San Francisco
Year: 2010
Model: SMT

Re: Kev's 1290 modification list

Post by Gnosisdog » Sun Apr 13, 2014 5:14 am

Does that very wavy torque line on the 1290 mean the current mapping is in need of a lot of refinement? By comparison Kev's modified SMT is smoothly progressive.

User avatar
kevxtx
Moderator
Moderator
Posts: 4776
Joined: Fri May 27, 2011 11:40 am
Country: Australia
City: Brisbane
Year: 2014

Re: Kev's 1290 modification list

Post by kevxtx » Sun Apr 13, 2014 5:15 am

Rear Can weight.


Mnnn I think that DB eater sleave needs to go.


downunder
Supporter
Supporter
Posts: 382
Joined: Sun Apr 21, 2013 11:23 am
Country: Australia
City: Mount Gambier
Year: 2014

Re: Kev's 1290 modification list

Post by downunder » Sun Apr 13, 2014 11:46 pm

Kev, hopefully a simple one for you.
Around the time of the first service, I intend to fit a slip on (probably Wings) and the DNA filter.
This time I'm going to make a serious effort to stop there with engine mods. Just want to improve airflow and get a nice exhaust note, and besides I've run out of money :(
Question: is there any point having the dealer block and disable the SAI as I will still be running a cat?
I will only get to the dealer once a year (900km round trip), so the 1000km service would be the time to do it if need be.
